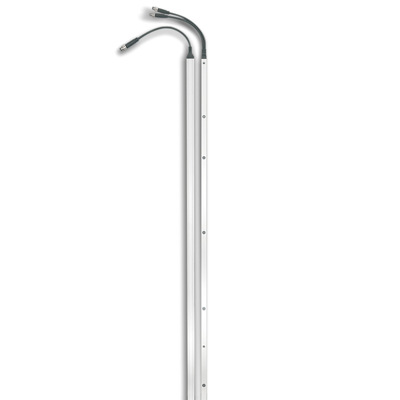

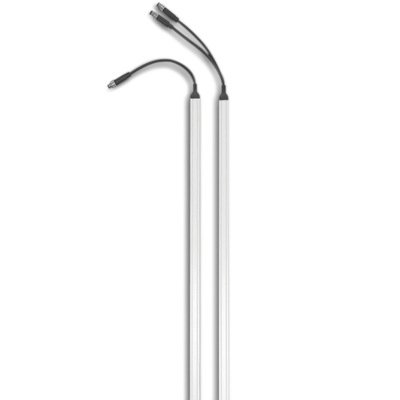

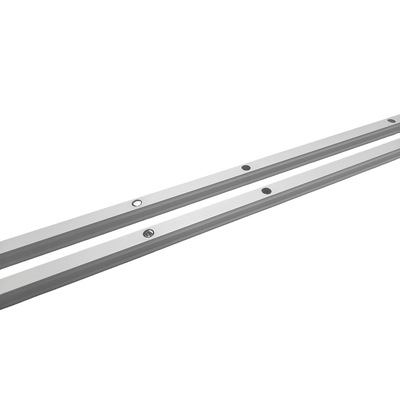

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors

Nome da marca: JUTAI
Número do modelo: CG15-8L
MOQ: Support 1-10 pcs for testing
preço: Negociável
Detalhes da embalagem: 1 set 1 cartoon. 8 set 1 big cartoon
Condições de pagamento: T/T, Western Union
Informações detalhadas
Descrição do produto
Informações detalhadas
Place of Origin:
Shenzhen China
Certificação:
CE
Working Voltage:
12 - 30VADC
Working Current:
64mA@DC12V / 44mA@DC24V / 34mA@DC30V
Output Load:
Maximum switching current: 1A, maximum switching voltage: 125V@AC, 60V@DC
Output:
Transmitter: - ；Receiver: NO, NC, COM

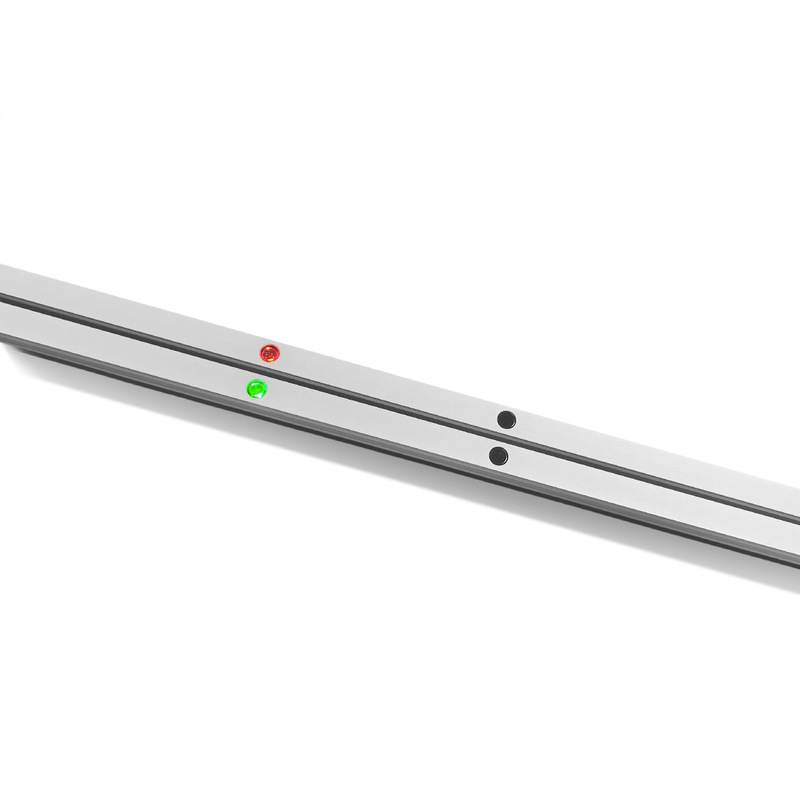

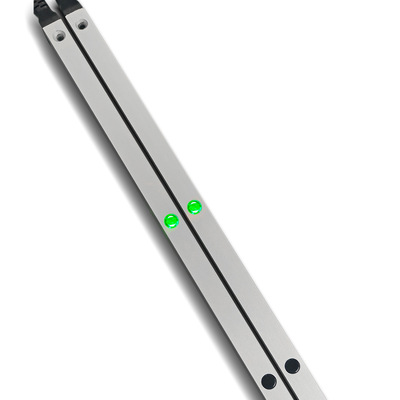

LED Status:
Transmitter: Green light always on (normal) ；Receiver: Red light (object obstruction), green light (unobstructed, power supply), red light flashing (first power on)
Angle:
Transmitter: ±15° ；Receiver: ±65°
Cable Length:
Transmitter Size 12m Receiver Size 4 m
Number of Optical Eyes:
8
Light Eye Distance:
175 mm
Wavelength:
950nm
Detection Distance:
12m (Indoor/Outdoor)
Response Speed:
23 ms
Closest Installation Distance:
50 cm

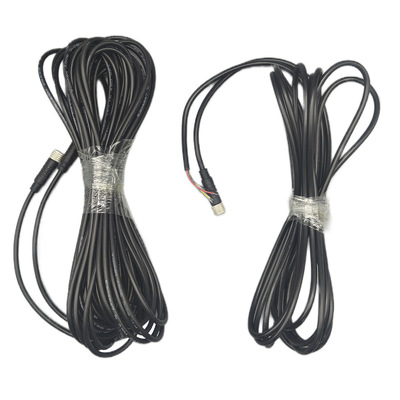

Cable Specifications:
AWG26
Shell Material:
Natural alumina
Protection Grade:
IP67
Operation Temperature:
-40°C ~ +70°C
Supply Ability:
1000 set per month
Destacar:

IP67 safety light curtain

,

high-speed roller door sensor

,

heavy machinery safety curtain

Descrição do produto

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors

Guardian of the Hazard Zone

Uncompromising Defense for Heavy Machinery Areas
Where massive equipment roars and high-speed roller doors slash through the air, our IP67 Safety Blanking Light Curtain stands as an indestructible shield. Engineered for the world's toughest heavy machinery zones – from forging presses to automated assembly lines – this rugged sentinel laughs off oil sprays, grinding dust, and high-pressure washdowns that destroy ordinary sensors. Its intelligent blanking technology allows pallets and forklifts to pass freely while instantly detecting workers’ limbs, preventing crushing accidents before high-momentum doors descend. The hermetically sealed armor doesn’t just resist water and debris; it actively protects door mechanisms from vibration-induced misalignment and impact damage. No more costly production halts or emergency stops – just silent, relentless vigilance that keeps your team safe and your heavy doors operating smoothly amid chaos.

The Smarter Safety Sentinel

When Every Millisecond Matters
Imagine safety systems that think faster than your fastest roller door. Our safety blanking curtain delivers split-second intelligence for high-traffic industrial portals, using adaptive beam deactivation to distinguish between permitted objects and human intrusion. Unlike conventional light grids, its IP67 fortress-grade construction survives submerged washdowns, metal shard storms, and extreme temperature swings in foundries or recycling plants. By eliminating false triggers from flying debris or steam, it prevents unnecessary door reversals that strain motors and wear out tracks. For maintenance crews working near hydraulic lifts or robotic arms, this is mission-critical protection: a self-preserving system that maintains flawless detection through grease, grime, and relentless 24/7 punishment. Invest in zero-downtime confidence – where worker safety and door longevity become non-negotiable.







Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 0





Product Size



Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 1





Wiring



Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 2





Production



Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 3 Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 4 Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 5



Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 6 Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 7 Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 8





Product Series



CG15-8L CL05-10L CL10-8L CL10-16L CL15-8L

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 91.5 m 8 Infrared Beam

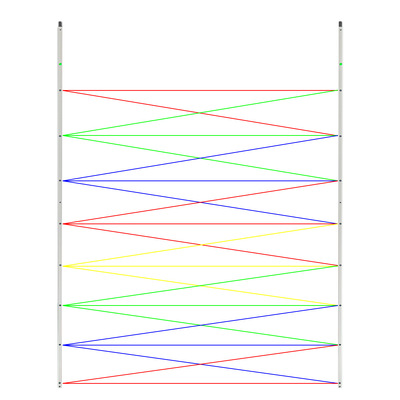

Cross Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 10
0.5 m 16 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 11

1 m 8 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 12

1 m 16 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 13

1.5 m 8 Infrared Beam

Parallel Beam Version
CL15-16L CL20-8L CL20-16L CL25-8L CL25-16L

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 14

1.5 m 16 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 15

2 m 8 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 16

2 m 16 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 17

2.5 m 8 Infrared Beam

Parallel Beam Version

Heavy Machinery Zones IP 67 Safety Blanking Light Curtain for High-Speed Roller Doors 18

2.5 m 16 Infrared Beam

Parallel Beam Version
